Audit Logs Guide

Audit Logs are your organization’s activity ledger on Voicing AI. They record who did what, when it happened, whether it succeeded, and which resource was affected — across user sessions, system processes, permission changes, and API token lifecycle events.

This guide explains the theory behind Audit Logs, how to read them in the product, and how the platform loads and filters events behind the scenes.

---

Table of Contents

1. What are Audit Logs?
2. Core concepts (the five Ws)
3. Why Audit Logs matter
4. Where to open Audit Logs
5. Page layout and controls
6. Search and filters in depth
7. Action categories and event types
8. Reading an event row
9. Pagination, sorting, and refresh
10. Retention and permissions
11. Backend API (how data is loaded)
12. Investigation workflows
13. Troubleshooting
14. Best practices

---

1. What are Audit Logs?

Audit Logs answer one question for your workspace:

What important activity happened, and who or what caused it?

They are not the same as Analytics call logs or chatbot conversation logs. Those products focus on customer-facing interactions (calls, chats, pathway steps). Audit Logs focus on platform governance: authentication, permissions, roles, API tokens, organization context, and other security-relevant changes.

The page subtitle states the scope clearly:

Every user action, system event, and API call across your organization.

In practice, that means:

Category	Examples
User lifecycle	Signup, login, logout, SSO, password reset
Access control	Permission requests, role updates, custom permission changes
API security	Create/regenerate API tokens, token status updates
System behavior	Organization switch, automated sign-out, background policy actions

Audit events are append-only from a user perspective: you review history; you do not edit or delete individual rows in the UI. Retention length is governed by your organization’s policy (see Retention and permissions).

flowchart LR
  subgraph sources [Event sources]
    U[User actions]
    S[System processes]
    A[API / token changes]
  end
  subgraph store [Audit store]
    L[Audit log records]
  end
  subgraph ui [Audit Logs UI]
    F[Search and filters]
    E[Event list]
  end
  U --> L
  S --> L
  A --> L
  L --> F
  F --> E

---

2. Core concepts (the five Ws)

Every audit event can be understood through five dimensions. Learning these makes filtering and API queries much easier.

Concept	Question it answers	Typical values
Actor	Who performed the action?	A user email, system, or an automated principal
Action	What operation occurred?	User Login, Update Role Permissions, Create API Token, …
Resource	What object was affected?	User ID, role ID, token ID, organization — often exposed as resource ID in search
Result	Did it succeed or fail?	Success, Failure (and related outcomes)
Timestamp	When did it happen?	Shown in local-friendly format (e.g. 14 May 2026, 14:00)

Change summary is the human-readable sentence combining action + context (for example, system signed out User or switched Organization). Search matches this text along with actor and resource fields.

Actor types in practice:

• Human user — email visible in the Actor column or filter.
• System — platform-initiated events (org switch, forced sign-out, policy-driven updates). The actor label is often literally system.
• API-related actors — token create/regenerate events tie back to whoever created the token or the integration that used it; always cross-check timestamps with your change window.

---

3. Why Audit Logs matter

Security and accountability

When permissions or API tokens change, Audit Logs provide a verifiable trail. If an account gains unexpected access, you can filter by Update User Permissions, Approve Permission Request, or API TOKEN actions and see the exact time and actor.

Compliance and governance

Many teams need to demonstrate who approved access and when credentials rotated. Audit Logs support internal audits without exporting raw database tables.

Incident response

During outages or “I was logged out” reports, reconstruct a timeline:

1. Set time range around the incident.
2. Filter by user (Actor) or search signed out / logout.
3. Read events newest-first to see the sequence.

Operational transparency

Admins can confirm whether a configuration change was intentional (role update, token regeneration) before rolling back unrelated settings.

---

4. Where to open Audit Logs

1. Sign in to Voicing AI (app.voicing.ai or your environment, e.g. app-dev.voicing.ai).
2. Confirm the correct workspace / organization in the header (audit data is scoped to the current org).
3. In the left sidebar, click Audit Logs (below API Flow in the platform navigation).
4. The URL path is typically /audit-logs.

Audit Logs — overview with search, filters, and chronological events

Who can see this page?
Usually Owner or admin-level roles. If you do not see Audit Logs in the sidebar, your role may not include audit read permission — contact your workspace owner.

---

5. Page layout and controls

The screen divides into three layers.

Header

Control	Purpose
Title + description	Confirms you are on the org-wide audit view
Search	Free-text search across actor, action, resource ID, change summary
Refresh	Reloads the latest events from the API (use after another admin makes a change)
Time range	Limits events to a period (e.g. All time, or a custom window when selected)

Filter bar

Filter	Purpose
Actor	Restrict to one or more actors (populated from frequent actors in the org)
Action	Restrict to categorized event types (USER, ROLE, PERMISSION, API TOKEN, …)
Result	Restrict by outcome (e.g. Success)
Clear all	Removes active filter tags

Active filters appear as removable chips (example: Result: Success).

Events list

• Summary line: e.g. Showing 1–50 of 55 · sorted newest first
• Scrollable list of rows: icon, actor, action text, timestamp
• Footer note: retention policy reminder

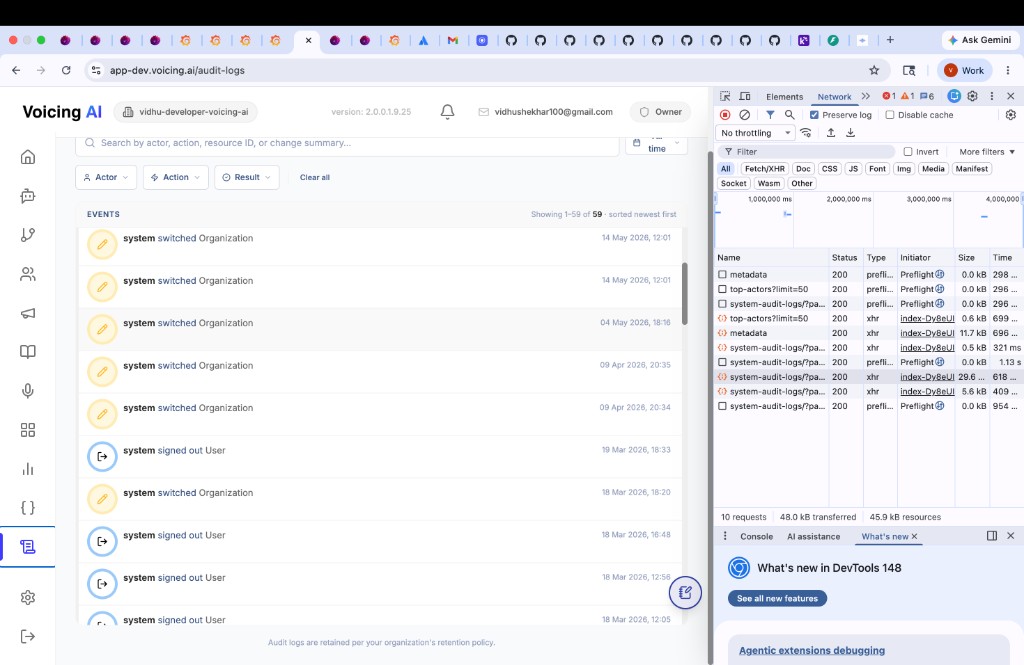

Events list — pagination summary, filters, and newest-first ordering

---

6. Search and filters in depth

Search behavior

The search placeholder guides what you can match:

Search by actor, action, resource ID, or change summary…

Tips:

• Use a full or partial email for a specific user.
• Search action labels (SSO Login, Regenerate API Token).
• Paste a resource ID when support gives you one from another system.
• Use keywords from the visible row text (signed out, Organization).

Search works together with dropdown filters: narrowing with Action first, then searching within results, is often faster than scrolling.

Actor filter

The UI loads actor suggestions from the backend (commonly via a top actors endpoint). Pick an actor to see only their events. Useful for:

• Reviewing all actions by one admin before offboarding
• Verifying what system did during a session issue

Result filter

Filter by Success (or other outcomes your deployment exposes) to hide failed attempts or to focus on failures only during brute-force investigations.

Time range

• All time — full history within retention.
• Custom range — when selected, the UI sends start_date and end_date as ISO 8601 timestamps to the list API (see Backend API).

Combining filters

Example: “Did user X successfully log in last week?”

1. Time range → last 7 days
2. Actor → user email
3. Action → User Login or SSO Login
4. Result → Success

Remove chips one-by-one or use Clear all to reset.

---

7. Action categories and event types

The Action dropdown groups events so you do not need to memorize every label. Categories reflect how the backend classifies audit actions.

USER

Authentication and profile-related events.

Action	When it is recorded
User Signup	New account registration
User Login	Standard email/password login
User Logout	User-initiated sign out
SSO Login	Single sign-on authentication
Request Password Reset	Reset flow started
Reset Password	Password successfully changed
Update User Permissions	Direct permission change on a user
Remove Custom Permissions	Custom grants removed

Action filter — USER category (auth and permissions)

ROLE

Action	When it is recorded
Update Role Permissions	Role definition or attached permissions changed

PERMISSION

Workflow for permission requests (common in larger teams).

Action	When it is recorded
Create Permission Request	User or admin requested additional access
Approve Permission Request	Request approved
Deny Permission Request	Request rejected

API TOKEN

Action	When it is recorded
Create API Token	New REST/API key created
Regenerate API Token	Existing token rotated
Update Token Status	Enabled/disabled or similar status change

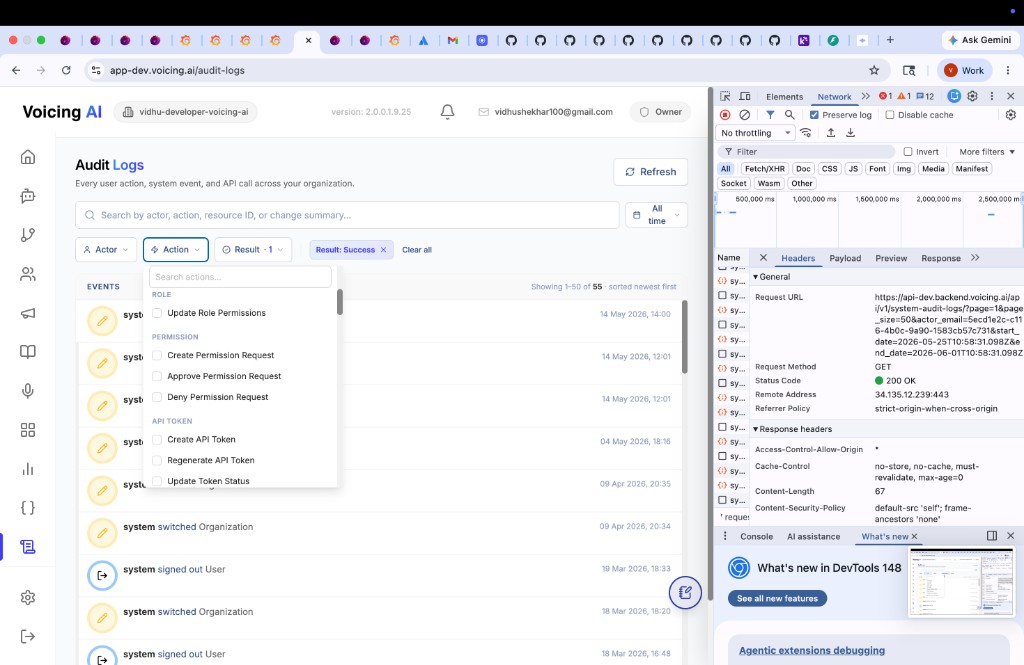

Action filter — ROLE, PERMISSION, and API TOKEN categories

Additional categories may appear as the product evolves (assistants, campaigns, telephony, etc.). Use the metadata API (below) in your environment to list the full current set.

---

8. Reading an event row

Each row is one immutable audit record in the UI.

UI element	Meaning
Icon	Visual hint (edit/pencil for config changes, exit icon for sign-out, etc.)
Actor	Principal that triggered the event
Action line	Short description of the change
Timestamp	When the server recorded the event (org timezone display)

Example rows and how to read them

What you see	Interpretation
system · switched Organization	Workspace context changed (user moved between orgs or default org updated)
system · signed out User	Session ended by system policy, admin action, or security flow — not necessarily user clicking Logout
User email · User Login	Successful authentication for that account
User email · Update Role Permissions	Role matrix changed; verify which role and who approved

When investigating, read newest first (default sort), then walk backward until you find the triggering event.

---

9. Pagination, sorting, and refresh

Behavior	Detail
Sort order	Newest first (most recent at top)
Page size	Typically 50 events per page
Pagination	Summary shows range and total (1–50 of 55)
Refresh	Fetches latest page from server; use after applying filters elsewhere

If an event you expect is missing:

• Go to page 2+ if total count exceeds page size.
• Widen or clear the time filter.
• Clear Result or Action filters that may hide it.
• Wait a few seconds and Refresh (write propagation delay is rare but possible).

---

10. Retention and permissions

Retention

The UI states:

Audit logs are retained per your organization's retention policy.

Implications:

• Older events are purged automatically after the configured period.
• Long-term archival for compliance must be handled outside the product (exports, SIEM, etc.) if required by your policy.
• Do not assume “All time” means forever — it means “all time within retention.”

Access control

• Viewing Audit Logs is a privileged operation.
• Restrict admin/owner roles to trusted operators.
• Pair Audit Log reviews with your API token rotation policy.

---

11. Backend API (how data is loaded)

The web app loads Audit Logs over REST. Understanding the endpoints helps developers build internal dashboards or validate integrations.

Primary list endpoint

GET /api/v1/system-audit-logs/

Common query parameters:

Parameter	Type	Purpose
page	integer	Page number (1-based)
page_size	integer	Records per page (e.g. 50)
actor_email	string (UUID/email)	Filter by actor
start_date	ISO 8601 UTC	Window start
end_date	ISO 8601 UTC	Window end
action / result filters	varies	Match UI filter selections

Example (as used when a date window is applied):

GET /api/v1/system-audit-logs/?page=1&page_size=50&start_date=2026-05-25T10:58:31.098Z&end_date=2026-06-01T10:58:31.098Z

Typical response: 200 OK with a paginated JSON body (list of events + total count). Exact field names depend on your API version; expect at minimum actor, action code/label, result, timestamp, and resource identifiers.

Supporting endpoints

The Network panel in the browser often shows companion calls:

Endpoint	Role
GET .../system-audit-logs/metadata	Action types, filter enums, schema for the UI
GET .../system-audit-logs/top-actors?limit=50	Populates the Actor filter with frequent actors

Authenticate these calls the same way as other platform APIs (session cookie / bearer token for the logged-in user). Do not expose audit export scripts with production credentials in client-side code.

Relationship to API Flow

API Flow documents outbound call and chatbot integration APIs (x-api-key). Audit Logs document governance APIs (system-audit-logs). Token creation and regeneration appear in Audit Logs; actual call traffic appears in Analytics and API Flow observability.

---

12. Investigation workflows

A. “User lost access overnight”

1. Open Audit Logs → set time range to last 24 hours.
2. Actor filter → affected email.
3. Action → PERMISSION + ROLE.
4. Look for Deny Permission Request, Remove Custom Permissions, or Update Role Permissions.
5. Note actor and timestamp; revert via Settings if unintended.

B. “Was this API key rotated?”

1. Action → API TOKEN.
2. Search Regenerate or Create.
3. Confirm actor and time with the engineer who deployed.
4. Invalidate old keys in Settings if rotation was unauthorized.

C. “Unexpected logout”

1. Search signed out or filter logout-related USER actions.
2. Check for system signed out User vs User Logout.
3. Correlate with SSO or password reset events on the same timeline.

D. “SSO login failures”

1. Action → SSO Login.
2. Result → Failure (if available).
3. Compare with User Login successes to isolate IdP vs password issues.

E. Weekly security review

1. Time range → last 7 days.
2. Scan API TOKEN and PERMISSION categories.
3. Document anomalies in your runbook.
4. Rotate tokens that have not been rotated per policy.

---

13. Troubleshooting

Symptom	Likely cause	What to do
Empty list	Filters too strict or wrong org	Clear all filters; confirm workspace
Missing recent event	Pagination or retention	Next page; refresh; check retention policy
Cannot open page	Insufficient role	Ask owner for audit access
Duplicate-looking rows	Separate actions in one flow	Read timestamps; login + org switch may be seconds apart
Search returns nothing	Typo or wrong field	Try actor email or partial action text

---

14. Best practices

• Review regularly — weekly or monthly scans of PERMISSION and API TOKEN categories.
• Investigate before changing access — filter Audit Logs first, then adjust roles in Settings.
• Treat system events seriously — they often reflect policy, not user error.
• Use time windows — narrow date ranges speed up API and UI queries.
• Document outcomes — when you find who changed a role, record it in your ticket system.
• Least privilege — limit who can view Audit Logs and who can approve permission requests.
• Align with API Flow — after token changes in Settings, verify Create / Regenerate entries match your deployment log.

---

Last updated: 06/01/2026
